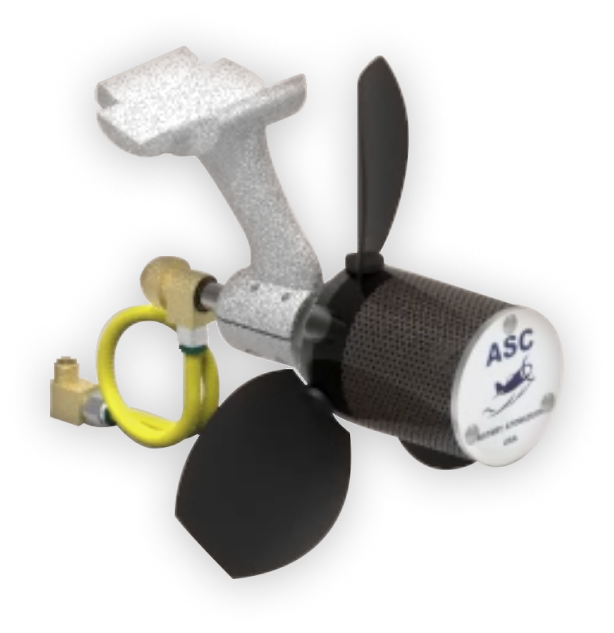

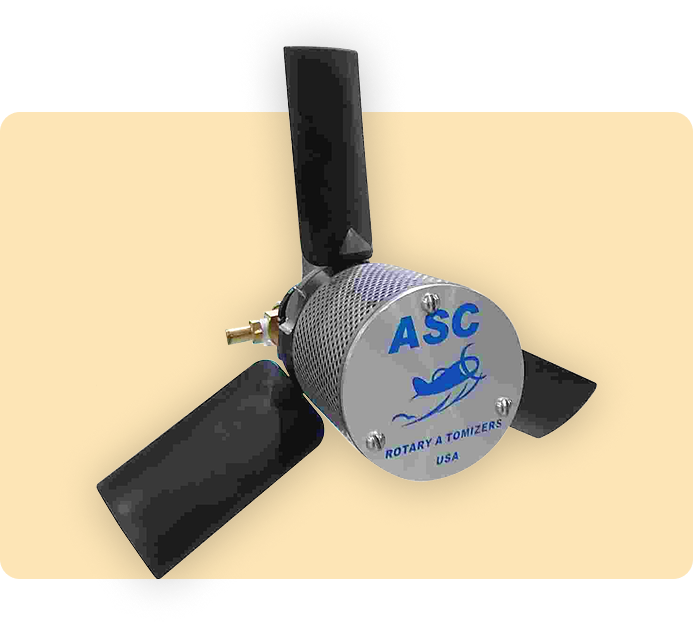

ASC Rotary Atomizers
Rotary spray nozzles for aerial applications
Coverage You Can Count On
Since their debut, ASC rotary atomizers have been a favorite among AG pilots. One main reason is the rugged, reliable design that has proven itself in applications worldwide. Designed by an AG pilot, the ASC is a result of more than 40 years of AG pilot experience flying different types of nozzles including other rotary atomizers. Also made popular by its low cost, aerodynamics and interchangeable spare parts, the ASC is truly the AG pilots choice for the absolute best droplet coverage.
The ASC design is compatible with existing aircraft pumping systems and flow monitors making them an ideal replacement for other nozzle types. Operating pressures are extremely low greatly reducing chances of leakage or premature pump failure. Flow rates of up to 15 gallons per minute per atomizer can be achieved with low pump pressu re.
WHY CHOSE US?
Why Choose ASC?
- Precision Components
- Years of Proven Performance
- Superior Coverage
- Worldwide Customer Support
- Models available for both Fixed Wing and Helicopter
- Rugged and Reliable Design
- Easy to Install and Maintain
- Made in USA
"We've proven in the field over and over again ... when compared to high pressure nozzles, ASC'S produce a more uniform droplet spectrum resulting in superior coverage."
Features
ASC Rotary Atomizers Features
-
1Universal mounting strut fits a wide assortment of boom types
-
2High strength reinforced blades
-
3High quality shielded bearings
-
4High speed Viton V-Seal for added bearing protection
-
5Secondary shutoff seal for fast positive shutoff
-
6Perforated stainless steel cage
-
7Stainless steel fasteners
-
8Stainless steel main shaft
-
9Hard anodized aluminum body
-
10Standard VO-7 Variable Restrictor
-
11Standard shutoff valve
USES
ASC ROTARY AUTOMIZERS USES
General Agriculture
Migratory Pests
Public Health
Plantations
Forestry
General Agriculture
Migratory Pests
Public Health
Plantations
Forestry
Know about our Product’s Parts
SPECIFICATIONS
ASE Technical Specifications
ASE Technical Specifications
ASC-A 10 Wind Driven (Fixed Wing)
ASC-A10H Wind Driven (Helicopter)
| Mounting | Aerodynamic cast mounting strut mounted to boom with stainless steel T – Bolt clamps & anti-slip pad |
|---|---|
| Blades | High strength graphite reinforced polymer (Used on A 10 and A10H) |
| Flow Control |
|
| Flow Capacity Per Atomizer | A10 and A10H= 15 GPM (57 L 100 oz/min) (3 LPM) |
| Chemical Shutoff |
|
| Droplet Size (Adjustable) | A10 and A10H: 50-800 VMD |
| Operating Speed (Adjustable) | A10 and A10H: 500-10,000 RPM depending on droplet size requirement |
| Weight | A10 and A10H: 4lbs. (1.8 kg) ea. |
| Spares Kit | Each set of ASC atomizers are shipped with an Application/Owners Manual, hose, clamps, pipe fittings, sealant and other items necessary for field installation. |
| Options |
|
To maintain the high quality product we reserve the right to make technical modifications at any time without prior notice.
